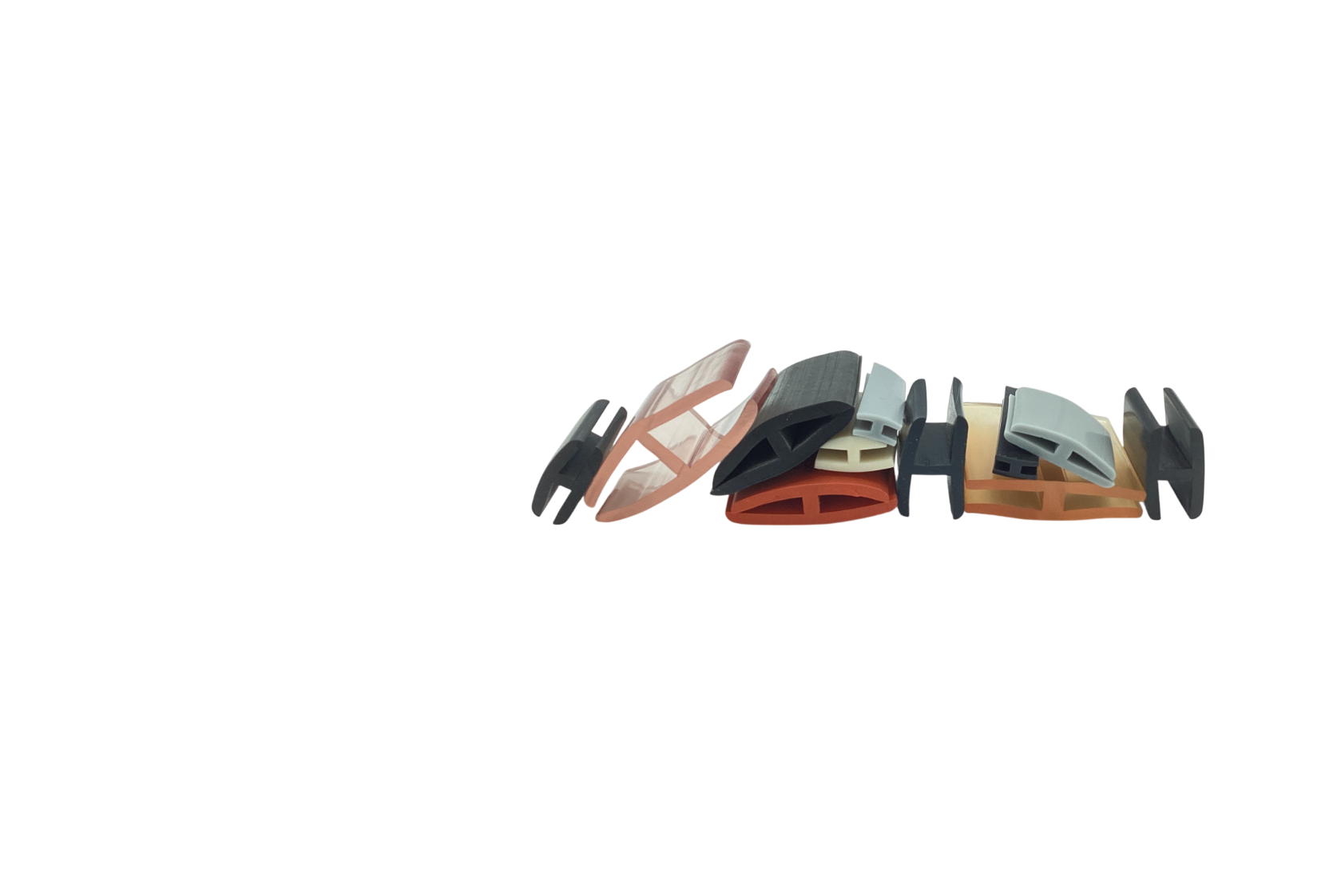

"H" shape rubber extrusions can be used join, align, and stabilize two separate panels while sealing the gap between them from dust, moisture, and other contaminants.
Available in a variety of rubber compounds depending on your application including Viton, Silicone, Fluorosilicone, Neoprene, EPDM, Hypalon, Butyl, Nitrile, SBR and Natural rubber.
Don't see the exact dimensions you need? Contact us and we can quote a CUSTOM shape for you.
Photos of items for sale are available on the order online page.
Order your "H" shape rubber Online Now!
| A | B | C | D | E | F | |||
|---|---|---|---|---|---|---|---|---|
| Figure | Catalog Number | Slot Width | Leg Width | O/A Width | Slot Depth | Cross Bar | O/A Height | |
A  |
CACH05 H shape - Silicone 50 duro grey acme-silicone-65407-spec-sheet |
.079" | .059" | .197" | .157" | .079" | .394" | Request Quote |
A |
CACH05 H shape - Silicone 50 duro black x 100 ft lengths acme-silicone-65007-spec-sheet |
.079" | .059" | .197" | .157" | .079" | .394" | Order Online |
A |
CACH05 H shape - Silicone 50 duro white x 100 ft lengths acme-silicone-65107-spec-sheet |
.079" | .059" | .197" | .157" | .079" | .394" | Order Online |
A |
CACH10 H shape - EPDM 60 duro black x 50 ft lengths acme-epdm-56000-spec-sheet |
.093" | .093" | .281" | .500" | .125" | 1.125" | Order Online |
A |
CACH25 H shape - Silicone 60 duro black x 100 ft lengths acme-silicone-66007-spec-sheet |
.125" | .093" | .312" | .500" | .125" | 1.125" | Order Online |
A |
CACH25 H shape - TPR 80 duro black x 100 ft lengths acme-tpr-88009-spec-sheet |
.125" | .093" | .312" | .500" | .125" | 1.125" | Order Online |
A |
CACH25 H shape - Nitrile 60 duro black x 50 ft lengths acme-nitrile-46000-spec-sheet |
.125" | .093" | .312" | .500" | .125" | 1.125" | Order Online |
A |
CACH25 H shape - Neoprene 60 duro black x 11 ft lengths acme-neoprene-36000-spec-sheet |
.125" | .093" | .312" | .500" | .125" | 1.125" | Order Online |
A |
CACH35 H shape - EPDM 80 duro black x 10 ft lengths acme-epdm-58000-spec-sheet |
.175" | .125" | .425" | .437" | .125" | 1.00" | Order Online |
A |
CACH37 H shape - PVC 70 duro clear acme-pvc-87909-spec-sheet |
.236" | .125" | .486" | .750" | .187" | 1.687" | Request Quote |
A |
CACH40 H shape - Silicone 60 duro red acme-silicone-66207-spec-sheet |
.250" | .125" | .500" | .750" | .125" | 1.625" | Request Quote |
A |
CACH40 H shape - Neoprene 60 duro black x 10 ft lengths acme-neoprene-36000-spec-sheet |
.250" | .125" | .500" | .750" | .125" | 1.625" | Order Online |
A |
CACH50 H shape - EPDM 80 duro black x 10 ft lengths acme-epdm-58000-spec-sheet |
.312" | .125" | .562" | .437" | .125" | 1.00" | Order Online |
A |
CACH60 H shape - Silicone 60 duro black x 100 ft lengths acme-silicone-66007-spec-sheet |
.375" | .125" | .625" | .500" | .125" | 1.125" | Order Online |
A |
CACH60 H shape - PVC 70 duro clear x 10 ft lengths acme-pvc-87909-spec-sheet |
.375" | .125" | .625" | .500" | .125" | 1.125" | Order Online |
A |
CACH70 H shape - PVC 70 duro clear x 50 ft lengths acme-pvc-87909-spec-sheet |
.500" | .125" | .750" | .937" | .125" | 2.00" | Order Online |
