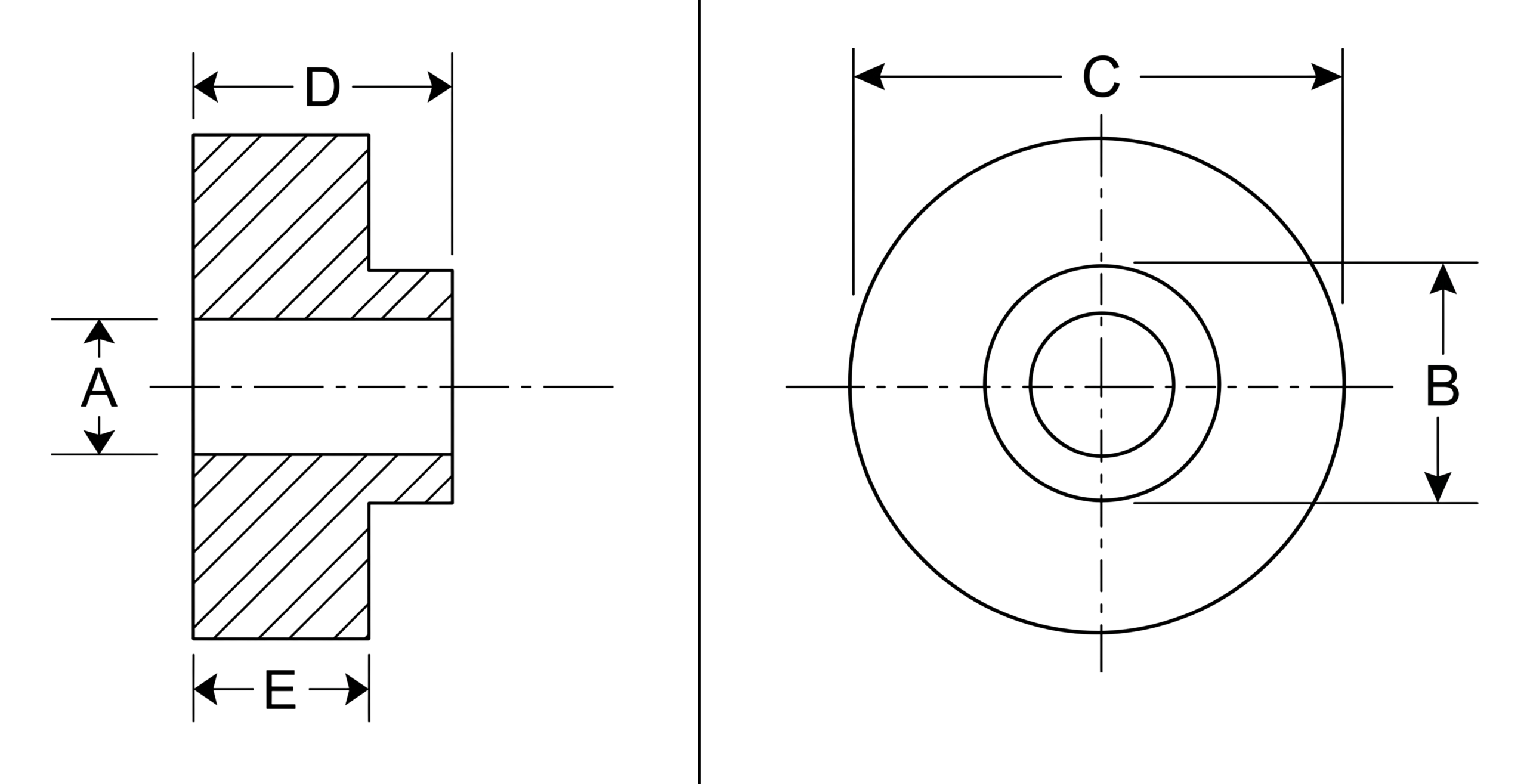

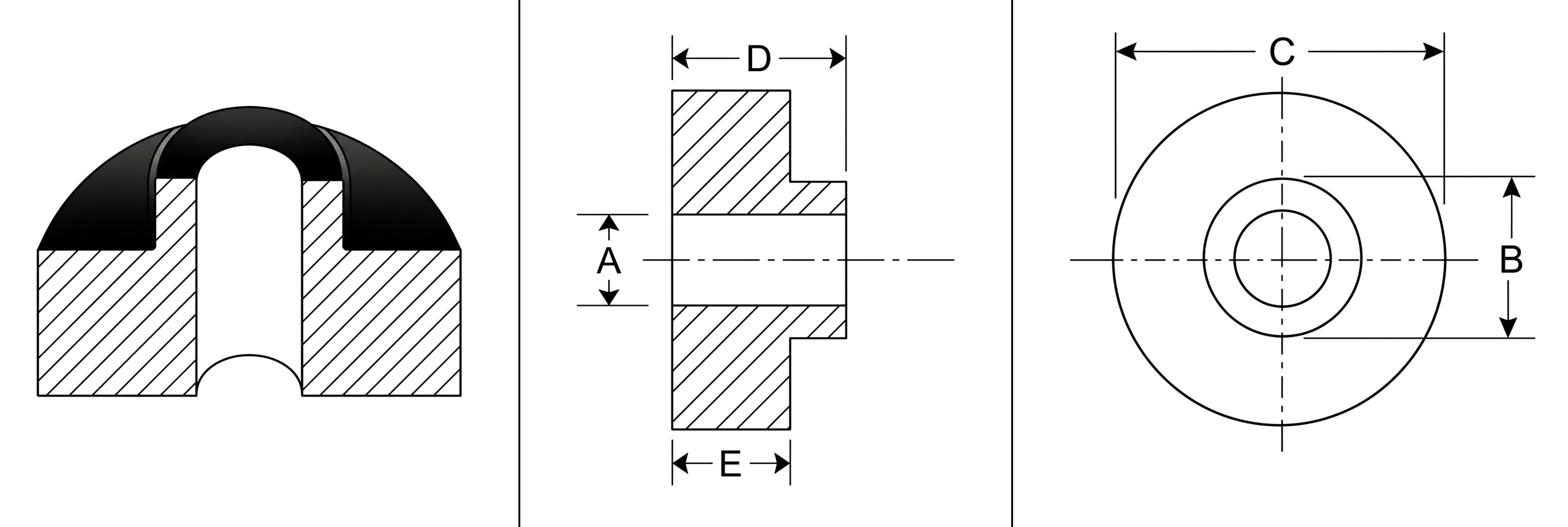

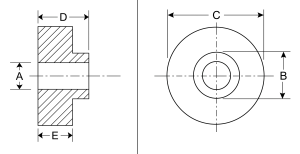

| A | B | C | D | E | |||
|---|---|---|---|---|---|---|---|
| Figure | Catalog Number | A = ID | B = Step OD | C = Base OD | D = O/A Height | E = Base Height | |
A  |
ML-14082 Rubber Step Bushing |
.032" | .093" | .500" | .250" | .125" | Request Quote |
A |
ML-5264 Rubber Step Bushing |
.085" | .196" | .470" | .312" | .125" | Request Quote |
A |
ML-14044-36009 Step Bushing - Neoprene 60 duro black x 100 pcs |
.095" | .212" | .375" | .107" | .040" | Order Online |
A |
ML-4948 Rubber Step Bushing |
.120" | .250" | .375" | .687" | .062" | Request Quote |
A |
ML-1404-26009 Step Bushing - SBR 60 duro black |
.125" | .187" | .375" | .093" | .062" | Request Quote |
A |
ML-14048-26009 Step Bushing - SBR 60 duro black |
.125" | .250" | .375" | .375" | .125" | Request Quote |
A |
ML-14050 Rubber Step Bushing |
.125" | .210" | .375" | .109" | .041" | Request Quote |
A |
ML-5892 Rubber Step Bushing |
.125" | .380" | .620" | .530" | .250" | Request Quote |
A |
ML-5884-26009 Step Bushing - SBR 60 duro black |
.140" | .500" | .750" | .375" | .125" | Request Quote |
A |
ML-14052 Rubber Step Bushing |
.150" | .250" | .375" | .187" | .062" | Request Quote |
|
ML-5912 Rubber Step Bushing |
.155" | .250" | .370" | .312" | .093" | Request Quote |
A |
ML-14204 Rubber Step Bushing |
.156" | .250" | .375" | .187" | .125" | Request Quote |
A |
ML-1408 Rubber Step Bushing |
.160" | .375" | .531" | .562" | .093" | Request Quote |
A |
ML-4862 Rubber Step Bushing |
.166" | .240" | .500" | .250" | .093" | Request Quote |
A |
ML-5398 Rubber Step Bushing |
.166" | .240" | .500" | .343" | .093" | Request Quote |
A |
ML-80180 Rubber Step Bushing |
.171" | .437" | .531" | .500" | .125" | Request Quote |
A |
ML-1406 Rubber Step Bushing |
.172" | .297" | .422" | .250" | .078" | Request Quote |
A |
ML-1402 Rubber Step Bushing |
.177" | .208" | .344" | .156" | .062" | Request Quote |
A |
ML-1410-26009 Step Bushing - SBR 60 duro black x 100 pcs |
.187" | .375" | .562" | .250" | .125" | Order Online |
A |
ML-14084 Rubber Step Bushing |
.187" | .437" | .531" | .500" | .125" | Request Quote |
A |
ML-14122 Rubber Step Bushing |
.187" | .312" | .625" | .110" | .062" | Request Quote |
A |
ML-14124 Rubber Step Bushing |
.187" | .203" | .625" | .219" | .125" | Request Quote |
A |
ML-4816 Rubber Step Bushing |
.200" | .375" | .500" | .185" | .062" | Request Quote |
A |
ML-14186 Rubber Step Bushing |
.203" | .656" | 1.00" | .375" | .187" | Request Quote |
A |
ML-14150 Rubber Step Bushing |
.203" | .375" | .687" | .110" | .075" | Request Quote |
A |
ML-14146 Rubber Step Bushing |
.218" | .375" | .750" | .313" | .125" | Request Quote |
A |
ML-14184 Rubber Step Bushing |
.218" | .625" | 1.00" | .531" | .375" | Request Quote |
A |
ML-14042 Rubber Step Bushing |
.219" | .312" | .406" | .187" | .078" | Request Quote |
A |
ML-14046 Rubber Step Bushing |
.219" | .297" | .375" | .187" | .078" | Request Quote |
A |
ML-80080-26009 Step Bushing - SBR 60 duro black x 100 pcs |
.250" | .375" | .750" | .500" | .125" | Order Online |
A |
ML-1412-26009 Step Bushing - SBR 60 duro black |
.250" | .437" | .625" | .250" | .187" | Request Quote |
A |
ML-1418-57009 Step Bushing - EPDM 70 duro black |
.250" | .500" | 1.00" | .531" | .344" | Request Quote |
A |
ML-5386 Rubber Step Bushing |
.250" | .437" | .625" | .188" | .062" | Request Quote |
A |
ML-4682-54009 Step Bushing - EPDM 40 duro black x 100 pcs |
.250" | .500" | .750" | .375" | .187" | Order Online |
A |
ML-5944-56009 Step Bushing - EPDM 60 duro black x 100 pcs |
.250" | .406" | .625" | .406" | .093" | Order Online |
A |
ML-14182 Rubber Step Bushing |
.250" | .500" | 1.00" | .375" | .250" | Request Quote |
A |
ML-14188 Rubber Step Bushing |
.265" | .615" | 1.00" | .625" | .250" | Request Quote |
A |
ML-1414 Rubber Step Bushing |
.312" | .468" | .750" | .625" | .312" | Request Quote |
A |
ML-1416 Rubber Step Bushing |
.312" | .500" | .875" | .375" | .250" | Request Quote |
A |
ML-14144-26009 Step Bushing - SBR 60 duro black x 100 pcs |
.312" | .500" | .750" | .375" | .187" | Order Online |
A |
ML-14192-56009 Step Bushing - EPDM 60 duro black x 100 pcs |
.312" | .625" | 1.00" | .375" | .187" | Order Online |
A |
ML-25297-34009 Step Bushing - Neoprene 40 duro black |
.312" | .625" | .875" | .500" | .125" | Request Quote |
A |
ML-1420 Rubber Step Bushing |
.328" | .500" | 1.250" | .563" | .375" | Request Quote |
A |
ML-14190 Rubber Step Bushing |
.328" | .615" | 1.00" | .625" | .250" | Request Quote |
A |
ML-14148 Rubber Step Bushing |
.328" | .625" | .984" | .328" | .187" | Request Quote |
A |
ML-5042 Rubber Step Bushing |
.343" | .750" | 1.00" | 1.125" | .375" | Request Quote |
A |
ML-5802-46009 Step Bushing - Nitrile 65 duro black x 100 pcs |
.375" | .687" | 1.250" | .500" | .375" | Order Online |
A |
ML-14162 Step Bushing |
.375" | .625" | .937" | .375" | .323" | Request Quote |
A |
ML-14202 Rubber Step Bushing |
.375" | .500" | .1.250" | .562" | .375" | Request Quote |
A |
ML-5928 Step Bushing |
.375" | .625" | .938" | .375" | .250" | Request Quote |
A |
ML-5940-46009 Step Bushing - Nitrile 60 duro black |
.375" | .656" | .875" | .375" | .187" | Request Quote |
A |
ML-5956-66219 Step Bushing - Silicone 60 duro red |
.375" | .938" | 1.187" | .422" | .078" | Request Quote |
A |
ML-1422 Rubber Step Bushing |
.437" | .812" | 1.250" | .578" | .500" | Request Quote |
A |
ML-14126 Rubber Step Bushing |
.437" | .750" | 1.375" | .437" | .187" | Request Quote |
A |
ML-1424 Rubber Step Bushing |
.493" | 1.072" | 1.187" | .562" | .125" | Request Quote |
