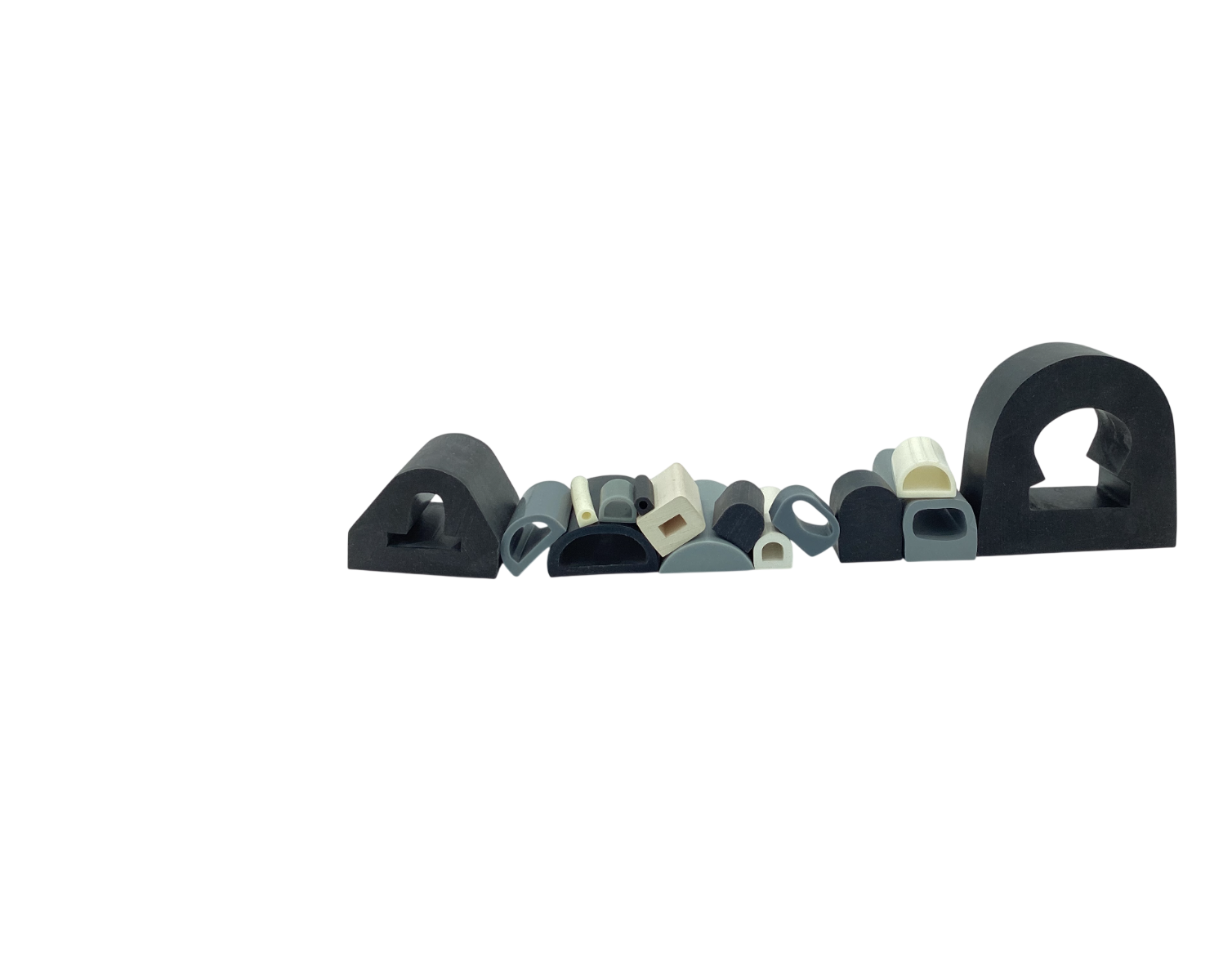

D shape extrusions are designed to compress under pressure and create a tight seal.
The flat side mounts easily to most surfaces and the round top will compress to fill smooth or uneven gaps.
Half rounds will seal out contaminants and cushion joints to reduce rattling and vibration.
Available in a variety of rubber compounds depending on your application including Viton, Silicone, Fluorosilicone, Neoprene, EPDM, Hypalon, Butyl, Nitrile, SBR and Natural rubber.
Don't see the exact dimensions you need? Contact us and we can quote a CUSTOM shape for you.
Photos of items for sale are available on the order online page.
Order your "D" shape rubber Online Now!
| A | B | C | D | E | F | |||
|---|---|---|---|---|---|---|---|---|
| Figure | Catalog Number | Base Width | Wall Thickness | Open Height | Base Thickness | Overall Height | Radius | |
B  |
CACD05 Half Round - Viton 60 duro black x 50 ft roll acme-viton-76009-spec-sheet |
.250" | .062" | .125" | .062" | .250" | .125" | Order Online |
B |
CACD05 Half Round - Silicone 50 duro grey x 50 ft roll acme-silicone-65407-spec-sheet |
.250" | .062" | .125" | .062" | .250" | .125" | Order Online |
B |
CACD05 Half Round - Silicone 40 duro white x 50 ft roll acme-silicone-64107-spec-sheet |
.250" | .062" | .125" | .062" | .250" | .125" | Order Online |
B |
CACD08 Half Round - Viton 60 duro black x 10 ft roll acme-viton-76009-spec-sheet |
.315" | .050" | .150" | .260" | .460" | Order Online | |
B |
CACD10 Half Round - Silicone 50 duro grey x 100 ft roll acme-silicone-65409-spec-sheet |
.375" | .050" | .250" | .137" | .437" | .187" | Order Online |
A  |
CACD20 Half Round - Silicone 60 duro white x 100 ft roll acme-silicone-66107-spec-sheet |
.500" | .062" | .250" | .062" | .375" | .250" | Order Online |
A |
CACD20 Half Round - Silicone 60 duro grey x 100 ft roll acme-silicone-66477-spec-sheet |
.500" | .062" | .250" | .062" | .375" | .250" | Order Online |
C  |
CACD30 Half Round - Silicone 50 duro translucent acme-silicone-65907-spec-sheet |
.500" | N/A | N/A | N/A | 1.00" | .250" | Request Quote |
A |
CACD34 Half Round - Nitrile 60 duro white x 12 ft roll acme-nitrile-46160-spec-sheet |
.563" | .125" | .313" | .125" | .563" | .281" | Order Online |
B |
CACD40 Half Round - Silicone 60 duro translucent acme-silicone-65907-spec-sheet |
.750" | .375" | .250" | .875" | 1.500" | .375" | Request Quote |
C |
CACD45 Half Round - Silicone 70 duro red acme-silicone-67207-spec-sheet |
.650" | N/A | N/A | N/A | .300" | .400" | Request Quote |
C |
CACD50 Half Round - EPDM 60 duro black acme-epdm-56000-spec-sheet |
.625" | N/A | N/A | N/A | .625" | .312" | Request Quote |
C |
CACD50 Half Round - Silicone 70 duro black acme-silicone-67009-spec-sheet |
.625" | N/A | N/A | N/A | .625" | .312" | Request Quote |
C |
CACD60 Half Round - Silicone 70 duro black acme-silicone-67009-spec-sheet |
.625" | N/A | N/A | N/A | .750" | .312" | Request Quote |
A |
CACD63 Half Round - Nitrile 85 duro white x 25 ft roll acme-nitrile-48160-spec-sheet |
.660" | .218" | .344" | .218" | .780" | .250" | Order Online |
C |
CACD64 Half Round - Silicone 70 duro red acme-silicone-67207-spec-sheet |
.678" | N/A | N/A | N/A | .340" | .400" | Request Quote |
C |
CACD65 Half Round - Silicone 70 duro red acme-silicone-67207-spec-sheet |
.678" | N/A | N/A | N/A | .370" | .400" | Request Quote |
A |
CACD70 Half Round - Silicone 60 duro grey x 125 ft roll acme-silicone-66407-spec-sheet |
.750" | .070" | .548" | .070" | .687" | .375" | Order Online |
A |
CACD80 Half Round - Silicone 60 duro grey acme-silicone-66407-spec-sheet |
.750" | .125" | .437" | .125" | .687" | .375" | Request Quote |
A |
CACD90 Half Round - Silicone 50 duro grey x 100 ft lengths acme-silicone-65407-spec-sheet |
.700" | .060" | .255" | .125" | .440" | Request Quote | |
B |
CACD92 Half Round - Nitrile 70 duro black x 10 ft lengths acme-nitrile-48000-spec-sheet |
.750" | .064" | .125" | .036" | .225" | .200" | Order Online |
C |
CACD93 Half Round - Nitrile 70 duro black acme-nitrile-47000-spec-sheet |
.750" | N/A | N/A | N/A | .375" | .375" | Request Quote |
A |
CACD95 Half Round - Neoprene 60 duro black x 10 ft roll acme-neoprene-36000-spec-sheet |
.750" | .080" | .215" | .080" | .375" | .200" | Request Quote |
A |
CACD95 Half Round - Viton 75 duro black acme-viton-77000-spec-sheet |
.750" | .080" | .215" | .080" | .375" | .200" | Request Quote |
C |
CACD100 Half Round - Nitrile 60 duro black acme-nitrile-46000-spec-sheet |
.937" | N/A | N/A | N/A | 1.125" | .469" | Request Quote |
A |
CACD110 Half Round - EPDM 60 duro black x 50 ft roll acme-epdm-56000-spec-sheet |
1.00" | .125" | .250" | .125" | .500" | .500" | Order Online |
A |
CACD110 Half Round - Silicone 60 duro grey acme-silicone-66409-spec-sheet |
1.00" | .125" | .250" | .125" | .500" | .500" | Request Quote |
C |
CACD120 Half Round - EPDM 70 duro black x 50 ft roll acme-epdm-57000-spec-sheet |
1.00" | N/A | N/A | N/A | .500" | .500" | Order Online |
D  |
CACD140 Half Round - Silicone 60 duro white x 100 ft roll acme-silicone-66107-spec-sheet |
.812" | .080" | .465" | .080" | .625" | .406" | Order Online |
D |
CACD140 Half Round - Silicone 60 duro grey acme-silicone-66407-spec-sheet |
.812" | .080" | .465" | .080" | .625" | .406" | Request Quote |
C |
CACD150 Half Round - Silicone 50 duro translucent acme-silicone-65907-spec-sheet |
1.125" | N/A | N/A | N/A | .300" | .672" | Request Quote |
C |
CACD160 Half Round - Silicone 50 duro translucent acme-silicone-65907-spec-sheet |
1.150" | N/A | N/A | N/A | .370" | .632" | Request Quote |
C |
CACD170 Half Round - Silicone 50 duro translucent acme-silicone-65929-spec-sheet |
.820" | N/A | N/A | N/A | .340" | .417" | Request Quote |
C |
CACD180 Half Round - Silicone 50 duro translucent acme-silicone-65929-spec-sheet |
1.200" | N/A | N/A | N/A | .300" | .750" | Request Quote |
C |
CACD190 Half Round - Silicone 50 duro grey acme-silicone-65409-spec-sheet |
1.375" | N/A | N/A | N/A | .500" | .687" | Request Quote |
B |
CACD200 Half Round - Silicone 50 duro grey acme-silicone-65467-spec-sheet |
.968" | .093" | .407" | .250" | .750" | Request Quote | |
A |
CACD220 Half Round - Nitrile 60 duro white x 10 ft roll acme-nitrile-46160-spec-sheet |
1.00" | .125" | .500" | .125" | .750" | .500" | Order Online |
A |
CACD220 Half Round - Nitrile 60 duro black x 10 ft roll acme-nitrile-46000-spec-sheet |
1.00" | .125" | .500" | .125" | .750" | .500" | Order Online |
A |
CACD225 Half Round - Viton 65 duro black acme-viton-76009-spec-sheet |
1.00" | .187" | .375" | .187" | .750" | Request Quote | |
A |
CACD225 Half Round - Silicone 50 duro red acme-silicone-65209-spec-sheet |
1.00" | .187" | .375" | .187" | .750" | Request Quote | |
C |
CACD230 Half Round - Nitrile 70 duro black x 50 ft lengths acme-nitrile-47000-spec-sheet |
1.00" | N/A | N/A | N/A | .875" | .312" | Order Online |
B |
CACD240 Half Round - EPDM 45 duro grey x 50 ft lengths acme-nitrile-54400-spec-sheet |
1.00" | .125" | .562" | .312" | 1.00" | Order Online | |
B |
CACD240 Half Round - Silicone 45 duro FDA grade grey acme-silicone-64407-spec-sheet |
1.00" | .125" | .562" | .312" | 1.00" | Request Quote | |
A |
CACD250 Half Round - EPDM 60 duro black acme-epdm-56000-spec-sheet |
1.500" | .125" | .250" | .125" | .500" | .750" | Request Quote |
B |
CACD255 Half Round - EPDM 70 duro black x 50 ft roll acme-epdm-57000-spec-sheet |
1.125" | .312" | .500" | .312" | 1.125" | .562" | Order Online |
A |
CACD257 Half Round - Butyl 60 duro black x 15 ft lengths acme-butyl-b6000-spec-sheet |
1.500" | .125" | .500" | .125" | .750" | .750" | Order Online |
A |
CACD258 Half Round - EPDM 70 duro black x 10 ft lengths acme-epdm-57000-spec-sheet |
1.500" | .156" | 1.187" | .156" | 1.500" | .750" | Order Online |
A |
CACD259 Half Round - EPDM 70 duro black x 10 ft lengths acme-epdm-57000-spec-sheet |
1.500" | .125" | 1.250" | .125" | 1.500" | .750" | Request Quote |
A |
CACD260 Half Round - Nitrile 60 duro black acme-nitrile-46000-spec-sheet |
1.500" | .250" | 1.00" | .250" | 1.500" | .750" | Request Quote |
A |
CACD270 Half Round - Nitrile 40 duro black x 10 ft lengths acme-nitrile-44000-spec-sheet |
1.500" | .250" | 1.00" | .250" | 1.500" | .750" | Request Quote |
C |
CACD275 Half Round - Neoprene 30 duro black x 12 foot roll acme-neoprene-33000-spec-sheet |
1.625" | N/A | N/A | N/A | .875" | Order Online | |
B |
CACD280 Half Round - Neoprene 60 duro black acme-neoprene-36000-spec-sheet |
1.750" | .500" | .750" | .500" | 1.750" | Request Quote | |
C |
CACD295 Half Round - Neoprene 40 duro black acme-neoprene-34000-spec-sheet |
2.500" | N/A | N/A | N/A | 1.125" | Request Quote | |
C |
CACD300 Half Round - Neoprene 30 duro black X 10 foot roll acme-neoprene-33000-spec-sheet |
2.500" | N/A | N/A | N/A | 1.250" | 1.250" | Order Online |
