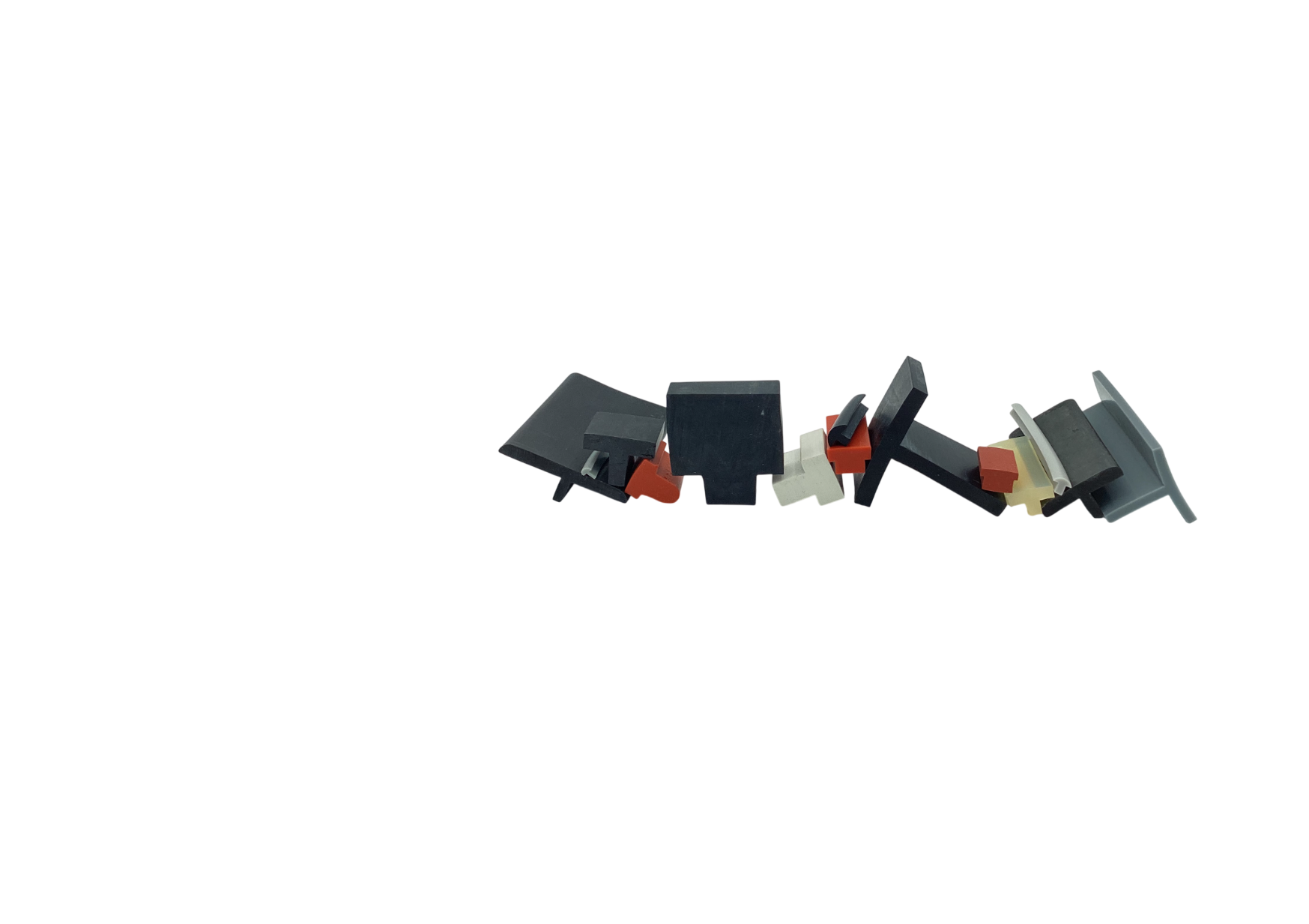

T shape extrusions can be used in sealing applications with a slot or groove allowing the base of the T to slide in to the gap and top of the T to cover the seam.
Available in a variety of rubber compounds depending on your application including Viton, Silicone, Fluorosilicone, Neoprene, EPDM, Hypalon, Butyl, Nitrile, SBR and Natural rubber.
Don't see the exact dimensions you need? Contact us and we can quote a CUSTOM shape for you.
Photos of items for sale are available on the order online page.
Order your "T" shape rubber Online Now!
| A | B | C | D | E | |||
|---|---|---|---|---|---|---|---|
| Figure | Catalog Number | Overall Width | Top Thickness | Base Height | Base Width | Overall Height | |
E  |
CACT05 T shape - Silicone 70 duro black x 100 ft lengths acme-silicone-67007-spec-sheet |
.200" | .082" | .125" | .050" | .207" | Order Online |
E |
CACT05 T shape - Silicone 70 duro grey x 100 ft lengths acme-silicone-67407-spec-sheet |
.200" | .082" | .125" | .050" | .207" | Order Online |
E |
CACT05 T shape - Silicone 70 duro white x 250 ft lengths acme-silicone-67107-spec-sheet |
.200" | .082" | .125" | .050" | .207" | Order Online |
E |
CACT07 T shape - Silicone 70 duro grey x 100 ft lengths acme-silicone-67407-spec-sheet |
.250" | .082" | .125" | .100" | .207" | Order Online |
E |
CACT07 T shape - Silicone 70 duro black x 100 ft lengths acme-silicone-67007-spec-sheet |
.250" | .082" | .125" | .100" | .207" | Order Online |
A  |
CACT09 T shape - Silicone 70 duro white acme-silicone-compound-67109-spec-sheet |
.255" | .081" | .125" | .105" | .206" | Request Quote |
A |
CACT10 T shape - Silicone 60 duro red x 100 ft lengths acme-silicone-66207-spec-sheet |
.265" | .096" | .153" | .149" | .249" | Order Online |
A |
CACT12 T shape - Silicone 40 duro black x 100 ft lengths acme-silicone-64009-spec-sheet |
.275" | .078" | .236" | .137" | .314" | Order Online |
E |
CACT20 T shape - EPDM 70 duro black x 50 ft lengths acme-epdm-57000-spec-sheet |
.400" | .150" | .150" | .125" | .300" | Order Online |
E |
CACT25 T shape - EPDM 70 duro black x 100 ft lengths acme-epdm-57000-spec-sheet |
.400" | .078" | .150" | .125" | .228" | Order Online |
F  |
CACT30 T shape - Silicone 60 duro translucent acme-silicone-66909-spec-sheet |
.450" | .080" | .495" | .120" | .575" | Request Quote |
E |
CACT32 T shape - EPDM 70 duro black x 50 ft lengths acme-epdm-57000-spec-sheet |
.500" | .150" | .750" | .130" | .900" | Order Online |
F |
CACT35 T shape - Silicone 60 duro black acme-silicone-66007-spec-sheet |
.500" | .090" | .410" | .125" | .500" | Request Quote |
F |
CACT35 T shape - EPDM 60 duro black x 12 ft lengths acme-epdm-56000-spec-sheet |
.500" | .090" | .410" | .125" | .500" | Order Online |
A |
CACT37 T shape - Silicone 50 duro black acme-silicone-65009-spec-sheet |
.500" | .060" | .110" | .100" | .170" | Request Quote |
D  |
CACT40 T shape - Silicone 40 duro red x 100 ft lengths acme-silicone-64209-spec-sheet |
.500" | .125" | .187" | .383" | .312" | Order Online |
A |
CACT45 T shape - Silicone 70 duro black x 250 ft lengths acme-silicone-67007-spec-sheet |
.500" | .125" | .125" | .187" | .250" | Order Online |
A |
CACT46 T shape - Silicone 50 duro translucent acme-silicone-65909-spec-sheet |
.562" | .125" | .125" | .125" | .250" | Request Quote |
A |
CACT46 T shape - EPDM 60 duro black x 50 ft lengths acme-epdm-56000-spec-sheet |
.562" | .125" | .125" | .125" | .250" | Order Online |
D |
CACT48 T shape - Silicone 40 duro black acme-silicone-64007-spec-sheet |
.570" | .200" | .200" | .400" | .400" | Request Quote |
D |
CACT48 T shape - Silicone 60 duro red acme-silicone-66207-spec-sheet |
.570" | .200" | .200" | .400" | .400" | Request Quote |
A |
CACT50 T shape - Silicone 70 duro translucent x 100 ft lengths acme-silicone-67907-spec-sheet |
.585" | .187" | .203" | .187" | .390" | Order Online |
C  |
CACT55 T shape - EPDM 60 duro black x 50 ft lengths acme-epdm-56000-spec-sheet |
.625" | .062" | .187" | .125" | .250" | Order Online |
C |
CACT60 T shape - Silicone 40 duro red acme-silicone-64207-spec-sheet |
.625" | .250" | .500" | .375" | .750" | Request Quote |
E |
CACT65 T shape - Butyl 60 duro black acme-butyl-b6000-spec-sheet |
.750" | .250" | .500" | .250" | .750" | Request Quote |
E |
CACT67 T shape - EPDM 70 duro black x 50 ft lengths acme-epdm-57000-spec-sheet |
.750" | .150" | .750" | .130" | .900" | Order Online |
A |
CACT70 T shape - Neoprene 60 duro black x 14 ft lengths acme-neoprene-36000-spec-sheet |
.750" | .375" | .500" | .375" | .875" | Order Online |
A |
CACT75 T shape - Silicone 70 duro translucent acme-silicone-67907-spec-sheet |
1.00" | .250" | .500" | .250" | .750" | Request Quote |
A |
CACT75 T shape - EPDM 70 duro black x 100 ft lengths acme-epdm-56000-spec-sheet |
1.00" | .250" | .500" | .250" | .750" | Order Online |
A |
CACT80 T shape - EPDM 70 duro black x 50 ft lengths acme-epdm-57000-spec-sheet |
1.125" | .125" | .750" | .125" | .875" | Order Online |
A |
CACT80 T shape - Silicone 60 duro grey x 100 ft lengths acme-silicone-67907-spec-sheet |
1.125" | .125" | .750" | .125" | .875" | Request Quote |
B  |
CACT81 T shape - EPDM 70 duro black x 50 ft rolls acme-epdm-57000-spec-sheet |
1.181" | .196" | .393" | .157" | .590" | Order Online |
D |
CACT85 T shape - EPDM 60 duro black acme-epdm-56000-spec-sheet |
1.500" | 1.250" | .500" | .710" | 1.750" | Request Quote |
B |
CACT87 T Shape - EPDM 60 duro black x 16 ft lengths acme-epdm-56000-spec-sheet |
2.00" | .196" | .393" | .156" | .590" | Order Online |
A |
CACT88 T shape - EPDM 70 duro black x 19 ft lengths acme-epdm-57000-spec-sheet |
2.00" | .250" | 1.750" | .250" | 2.00" | Order Online |
B |
CACT93 T Shape - EPDM 80 duro black x 15 ft lengths acme-epdm-58000-spec-sheet |
3.375" | .250" | 2.250" | .250" | 2.500" | Order Online |
B |
CACT94 T shape - EPDM 70 duro black x 10 ft lengths acme-epdm-57000-spec-sheet |
4.00" | .250" | 1.750" | .500" | 2.00" | Order Online |
B |
CACT96 cact96 T shape - EPDM 70 duro black x 30 ft long acme-epdm-57000-spec-sheet |
4.700" | .250" | 1.750" | .250" | 2.00" | Order Online |
B |
CACT98 T shape - EPDM 70 duro black x 10 ft lengths acme-epdm-57000-spec-sheet |
6.500" | .250" | 3.00" | .400" | 3.250" | Request Quote |
B |
CACT98 T shape - EPDM 70 duro black x 5 ft lengths acme-epdm-57000-spec-sheet |
6.500" | .250" | 3.00" | .400" | 3.250" | Order Online |
B |
CACT102 T shape - SBR 70 duro black x 10 ft lengths acme-sbr-27009-spec-sheet |
6.500" | .625" | 3.375" | .625" | 4.00" | Request Quote |
D |
CACT124 T shape - EPDM 70 duro black x 10 ft lengths acme-epdm-57000-spec-sheet |
7.00" | .250" | 2.00" | 4.00" | 2.250" | Request Quote |
B |
CACT156 T shape - EPDM 70 duro grey x 5 ft lengths acme-epdm-57409-spec-sheet |
8.500" | .250" | 2.00" | .250" | 2.250" | Order Online |
B |
CACT156 T shape - EPDM 70 duro grey x 10 ft lengths acme-epdm-57409-spec-sheet |
8.500" | .250" | 2.00" | .250" | 2.250" | Request Quote |
