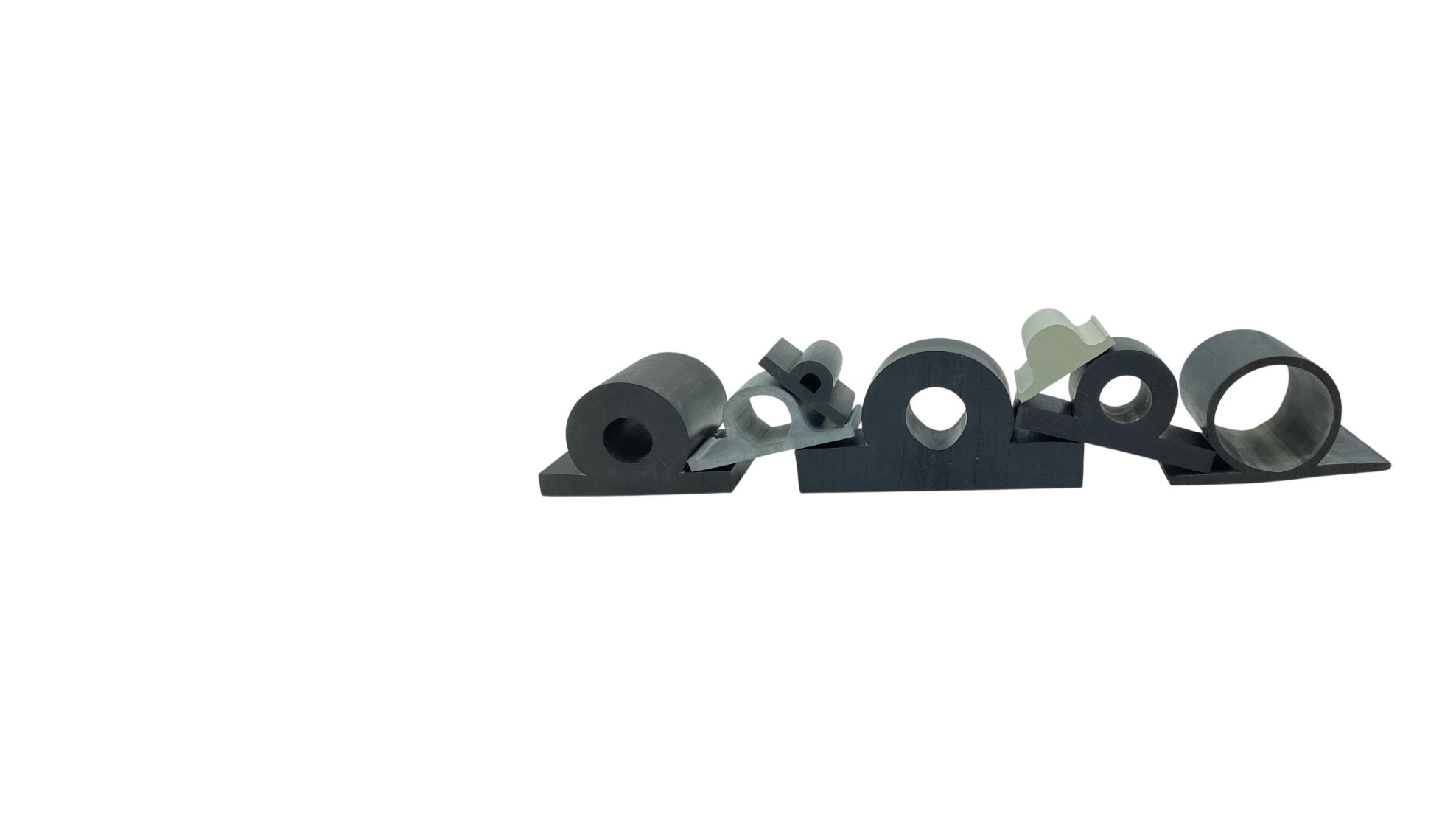

Wing Bumpers can be used as protective bumpers to reduce impact between surfaces.
The flat legs help with alignment and provide stability on the mounting surface while the bulb can be solid or hollow with thick or thin walls depending on it's use.
Available in a variety of rubber compounds depending on your application including Viton, Silicone, Fluorosilicone, Neoprene, EPDM, Hypalon, Butyl, Nitrile, SBR and Natural rubber.
Don't see the exact dimensions you need? Contact us and we can quote a CUSTOM shape for you.
Photos of items for sale are available on the order online page.
Order your Rubber Wing Bumpers Online Now!
| A | B | C | D | E | F | G | |||
|---|---|---|---|---|---|---|---|---|---|
| Figure | Catalog Number | Bulb OD | Bulb ID | Bulb Wall Thickness | Leg Width | O/A Height | Leg Thickness | O/A Width | |
B  |
CACW04 Wing Bumper - Viton 60 duro black x 10 ft roll acme-viton-76000-spec-sheet |
.562" | .375" | .093" | 1.00" | .593" | .093" | 2.562" | Order Online |
B |
CACW06 Wing Bumper - Neoprene 60 duro black x 50 ft roll acme-neoprene-36000-spec-sheet |
.875" | .562" | .156" | .562" | .875" | .156" | 2.00" | Order Online |
A  |
CACW10 Wing Bumper - EPDM 70 duro black x 50 ft roll acme-epdm-57000-spec-sheet |
.875" | .375" | .250" | .625" | .875" | .250" | 2.125" | Order Online |
D  |
CACW19 Wing Bumper - Neoprene 60 duro grey x 10 ft roll acme-neoprene-36400-spec-sheet |
1.188" | N/A | N/A | .531" | 1.125" | .188" | 2.250" | Order Online |
C  |
CACW20 Wing Bumper - EPDM 70 duro grey x 10 ft roll acme-epdm-57470-spec-sheet |
1.188" | .812" | .312" | .531" | 1.125" | .188" | 2.250" | Order Online |
B |
CACW24 Wing Bumper - EPDM 60 duro black x 10 ft lengths acme-epdm-57000-spec-sheet |
1.375" | .875" | .250" | .375" | 1.375" | .250" | 2.125" | Request Quote |
C |
CACW30 Wing Bumper - EPDM 70 duro grey x 10 ft roll acme-epdm-57470-spec-sheet |
1.625" | 1.125" | .250" | .970" | 1.563" | .250" | 3.563" | Order Online |
B |
CACW35 Wing Bumper - EPDM 75 duro black x 10 ft roll acme-epdm-57000-spec-sheet |
2.00" | 1.00" | .500" | 1.00" | 2.125" | .500" | 4.00" | Order Online |
B |
CACW40 Wing Bumper - EPDM 75 duro black acme-epdm-57000-spec-sheet |
2.00" | 1.00" | .500" | 2.00" | 2.00" | .750" | 6.00" | Request Quote |
B |
CACW44 Wing Bumper - EPDM 70 duro black x 12 ft roll acme-epdm-57029-spec-sheet |
2.500" | 2.00" | .250" | .375" | 2.500" | .250" | 3.250" | Order Online |
B |
CACW45 cacw45 Wing Bumper - EPDM 60 duro black x 10 ft roll acme-epdm-56000-spec-sheet |
2.625" | 2.250" | .187" | .812" | 2.625" | .187" | 4.250" | Order Online |
B |
CACW50 Wing Bumper - EPDM 75 duro black x 10 ft roll acme-epdm-57000-spec-sheet |
2.500" | 1.00" | .750" | .687" | 2.500" | .500" | 3.875" | Order Online |
B |
CACW52 Wing Bumper - EPDM 70 duro black x 10 ft roll acme-epdm-57000-spec-sheet |
2.500" | 1.00" | .750" | .750" | 2.500" | .500" | 4.00" | Order Online |
B |
CACW60 Wing Bumper - EPDM 75 duro black x 10 ft roll acme-epdm-57000-spec-sheet |
3.00" | 1.250" | .875" | 1.500" | 3.00" | 1.00" | 6.00" | Order Online |
