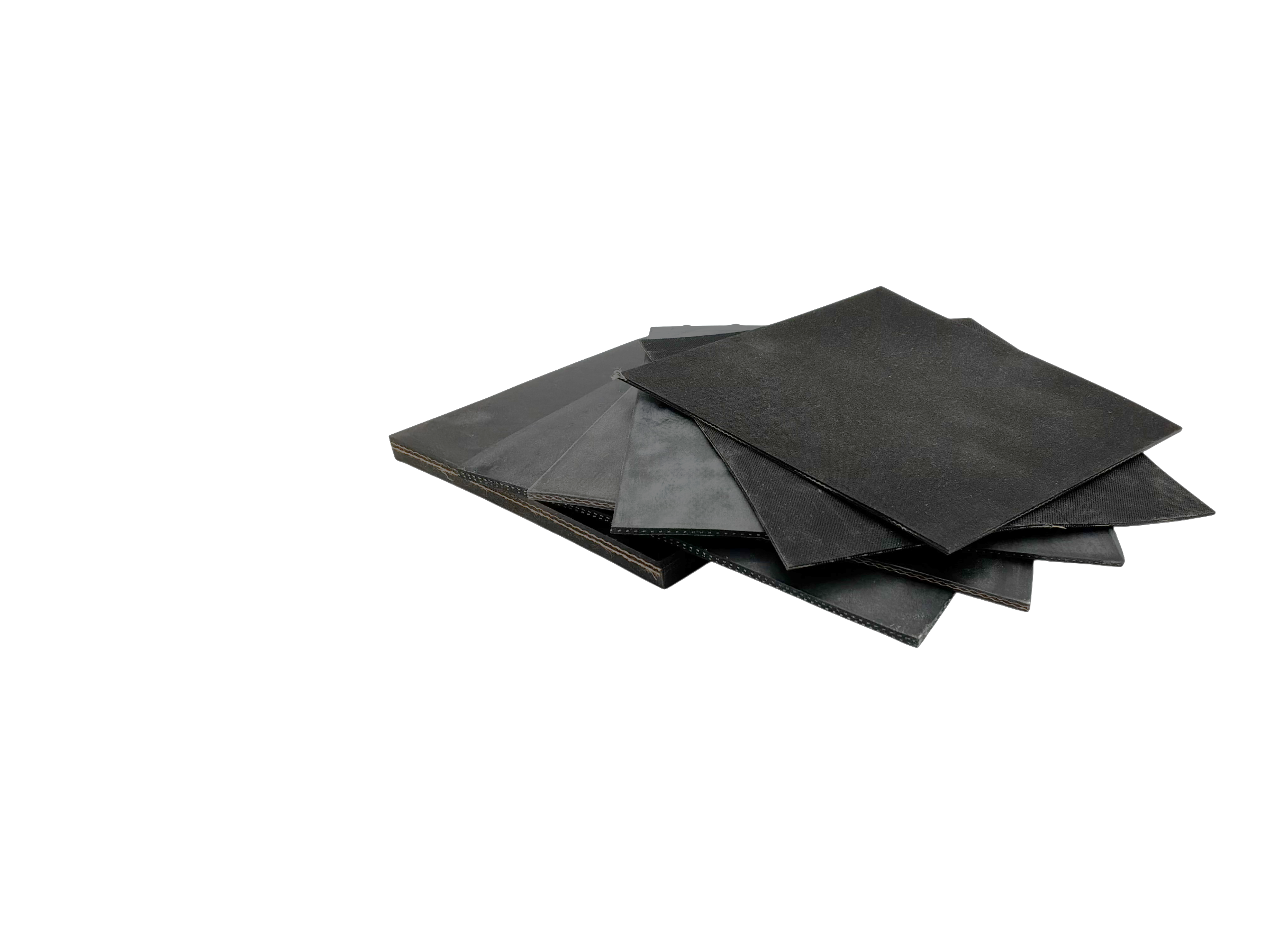

Neoprene/EPDM Cloth-Inserted Sheet

Rubber Sheet

Neoprene/EPDM Cloth-Inserted Sheet



Key Properties and Uses of Cloth-Inserted Rubber Sheets

  • High-Tension Dimensional Stability: Internal fabric reinforcement prevents stretching, warping, and deformation under heavy mechanical loads.

  • Heavy-Duty Sealing Applications: Engineered for custom diaphragms, high-pressure gaskets, and industrial seals requiring maximum structural strength.

  • Custom Fabric Reinforcements: Available standard in Neoprene or EPDM with polyester fabric, with options for Nylon, Cotton, Fiberglass, or Nomex reinforcement.

  • Custom Converting Services: Factory slitting available to produce exact widths, custom-sized rolls, or narrow industrial strips.

Catalog Number Description
SI-.032X60-3X009 RUBBER SHEET .032" THICK X 60" WIDE X ROLL NEOPRENE BLACK COLOR  WITH 1 PLY CLOTH INSERTION aaa-acme-rubber-neoprene-nylon-inserted-si-032x60-3x009-spec-sheet Order Online
SI-.062X36-3X000 RUBBER SHEET .062" THICK X 36" WIDE X ROLL NEOPRENE BLACK COLOR WITH 1 PLY FABRIC INSERTION aaa-acme-rubber-neoprene-polyester-inserted-si-062x36-3x000-spec-sheet Request Quote
SI-.062X48-3X000 RUBBER SHEET .062" THICK X 48" WIDE X ROLL NEOPRENE BLACK COLOR WITH 1 PLY FABRIC INSERTION aaa-acme-rubber-neoprene-polyester-inserted-si-062x48-3x000-spec-sheet Request Quote
SI-.062X48-5X009 RUBBER SHEET .062" THICK X 48" WIDE X ROLL EPDM BLACK COLOR WITH 1 PLY FABRIC INSERTION aaa-acme-rubber-epdm-polyester-inserted-si-062x48-5x000-spec-sheet Order Online
SI-.062X60-5X069 RUBBER SHEET .062" THICK X 60" WIDE X ROLL EPDM BLACK WITH 1 PLY FABRIC INSERTION GREEN WAVY LINES 1 SIDE aaa-acme-rubber-epdm-nylon-inserted-si-062x60-5x069-spec-sheet Request Quote
SI-.074X60-5X069 RUBBER SHEET .074" THICK X 60" WIDE X ROLL EPDM BLACK COLOR WITH 1 PLY FABRIC INSERTION aaa-acme-rubber-epdm-nylon-inserted-si-074x60-5x069-spec-sheet Order Online
SI-.093X36-3X000 RUBBER SHEET .093" THICK X 36" WIDE X ROLL NEOPRENE BLACK COLOR WITH 1 PLY FABRIC INSERTION aaa-acme-rubber-neoprene-polyester-inserted-si-093x36-3x000-spec-sheet Request Quote
SI-.093X48-3X000 RUBBER SHEET .093" THICK X 48" WIDE X ROLL NEOPRENE BLACK COLOR WITH 1 PLY FABRIC INSERTION aaa-acme-rubber-neoprene-polyester-inserted-si-093x48-3x000-spec-sheet Request Quote
SI-.125X36-3X000 RUBBER SHEET .125" THICK X 36" WIDE X ROLL NEOPRENE BLACK COLOR WITH 2 PLY FABRIC INSERTION aaa-acme-rubber-neoprene-polyester-inserted-si-125x36-3x000-spec-sheet Request Quote
SI-.125X48-3X000 RUBBER SHEET .125" THICK X 48" WIDE X ROLL NEOPRENE BLACK COLOR WITH 2 PLY FABRIC INSERTION aaa-acme-rubber-neoprene-polyester-inserted-si-125x48-3x000-spec-sheet Request Quote
SI-.125X48-5X009 RUBBER SHEET .125" THICK X 48" WIDE X ROLL EPDM BLACK COLOR WITH 2 PLY FABRIC INSERTION aaa-acme-rubber-epdm-polyester-inserted-si-125x48-5x009-spec-sheet Order Online
SI-.187X36-3X000 RUBBER SHEET .187" THICK X 36" WIDE X ROLL NEOPRENE BLACK COLOR WITH 3 PLY CLOTH INSERTION aaa-acme-rubber-neoprene-polyester-inserted-si-187x36-3x000-spec-sheet Request Quote
SI-.187X48-3X000 RUBBER SHEET .187" THICK X 48" WIDE X ROLL NEOPRENE BLACK COLOR WITH 3 PLY FABRIC INSERTION aaa-acme-rubber-neoprene-polyester-inserted-si-187x48-3x000-spec-sheet Request Quote
SI-.250X36-3X000 RUBBER SHEET .250" THICK X 36" WIDE X ROLL NEOPRENE BLACK COLOR WITH 4 PLY FABRIC INSERTION aaa-acme-rubber-neoprene-polyester-inserted-si-250x36-3x000-spec-sheet Request Quote
SI-.250X48-3X000 RUBBER SHEET .250" THICK X 48" WIDE X ROLL NEOPRENE BLACK COLOR WITH 4 PLY FABRIC INSERTION aaa-acme-rubber-neoprene-polyester-inserted-si-250x48-3x000-spec-sheet Request Quote
SI-.375X36-2X009 RUBBER SHEET .375" THICK X 36" WIDE X ROLL SBR BLACK COLOR WITH 2 PLY FABRIC INSERTION aaa-acme-rubber-sbr-polyester-inserted-si-375x36-2x009-spec-sheet Order Online
