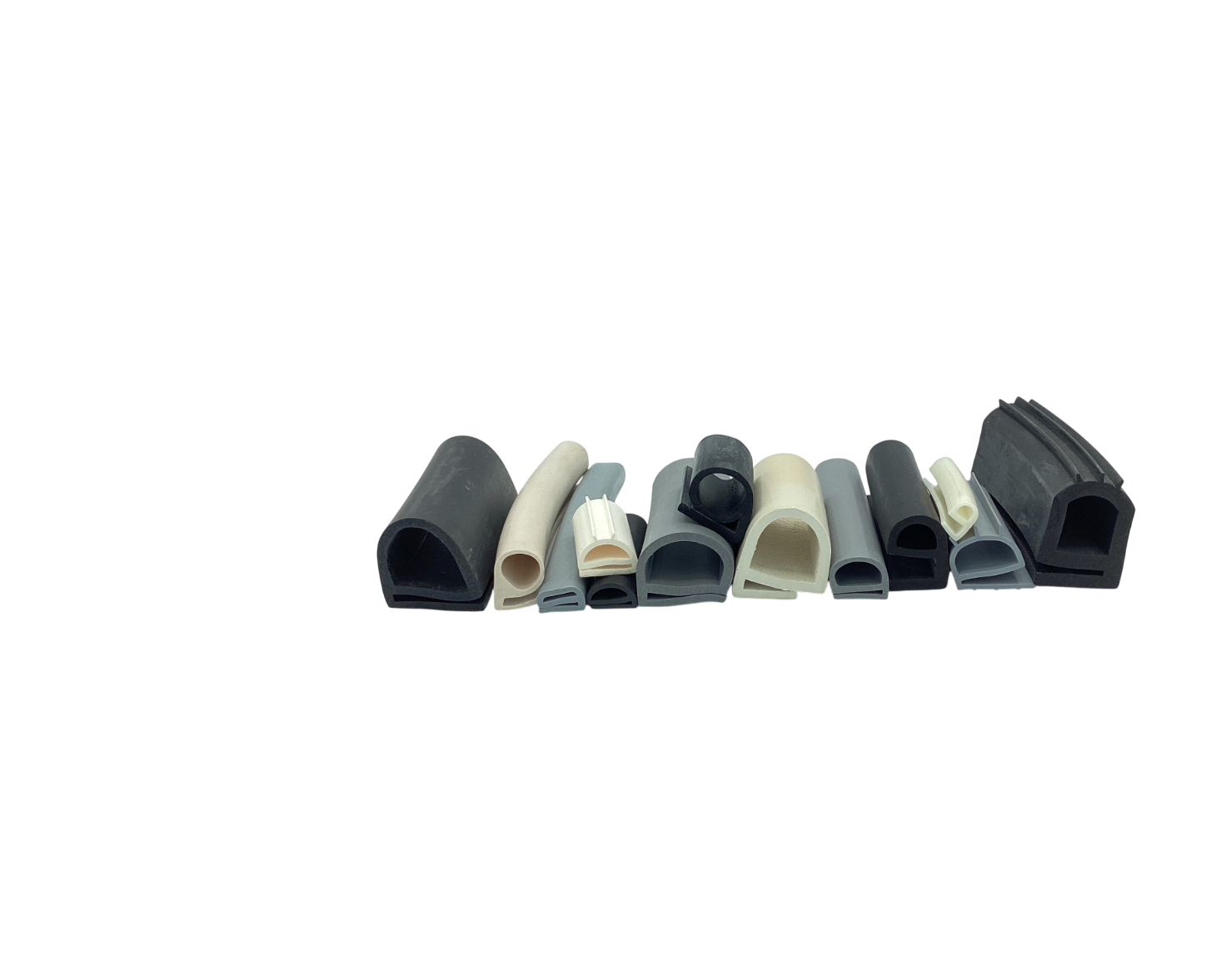

Primary Application: Reliable sealing for doors, windows, and other types of enclosures.
Maximum Protection: Effectively keeps out moisture, dust, and other environmental contaminants.
Material Variety: Available in multiple rubber compounds depending on your specific application, including Viton, Silicone, Fluorosilicone, Neoprene, EPDM, Hypalon, Butyl, Nitrile, SBR, and Natural rubber.
Custom Dimensions: Don't see the exact size you need? Contact us and we can quote a custom shape for you.
Easy Ordering: Browse our complete inventory below to find your exact match, view item photos on the order online page, and order online now.
| A | B | C | D | E | F | G | H | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Figure | Catalog Number | Bulb Width | Wall | Bulb Height | Slot Width | Base Thickness | O/A Height | Slot Base | Slot Depth | |
A  |
CACE06 e Shape - Silicone 60 duro white x 100 ft lengths acme-silicone-66107-spec-sheet |
.250" | .050" | .225" | .125" | .050" | .400" | .050" | .200" | Order Online |
A |
CACE06 e Shape - Viton 60 duro black x 10 ft lengths acme-viton-76000-spec-sheet |
.250" | .050" | .225" | .125" | .050" | .400" | .050" | .200" | Request Quote |
A |
CACE10 e Shape - Silicone 60 duro grey x 100 ft lengths acme-silicone-66407-spec-sheet |
.375" | .062" | .250" | .062" | .062" | .375" | .062" | .312" | Order Online |
A |
CACE20 e Shape - Neoprene 40 duro black acme-neoprene-34000-spec-sheet |
.500" | .062" | .250" | .062" | .062" | .375" | .062" | .437" | Request Quote |
A |
CACE20 e Shape - Viton 60 duro black x 10 ft lengths acme-viton-76000-spec-sheet |
.500" | .062" | .250" | .062" | .062" | .375" | .062" | .437" | Order Online |
A |
CACE30 e Shape - Silicone 40 duro black x 50 ft lengths acme-silicone-64000-spec-sheet |
.500" | .062" | .250" | .062" | .062" | .375" | .062" | .437" | Order Online |
A |
CACE40 e Shape - Silicone 60 duro white acme-silicone-66103-spec-sheet |
.500" | .040" | .500" | .109" | .062" | .672" | .125" | .375" | Request Quote |
A |
CACE50 e Shape - Neoprene 60 duro black x 15 ft lengths acme-neoprene-36009-spec-sheet |
.812" | .062" | .312" | .187" | .062" | .562" | .062" | .750" | Order Online |
B  |
CACE60 e Shape - EPDM 60 duro black x 50 ft lengths acme-epdm-56000-spec-sheet |
.625" | .062" | .329" | .046" | .062" | .437" | .062" | .562" | Order Online |
B |
CACE60 e Shape - Silicone 50 duro white x 50 ft lengths acme-silicone-65179-spec-sheet |
.625" | .062" | .329" | .046" | .062" | .437" | .062" | .562" | Order Online |
B |
CACE70 e Shape - Silicone 60 duro grey acme-silicone-66407-spec-sheet |
.625" | .062" | .329" | .046" | .062" | .437" | .062" | .562" | Request Quote |
A |
CACE80 e Shape - Silicone 50 duro grey x 100 ft lengths acme-silicone-65409-spec-sheet |
.469" | .062" | .187" | .062" | .062" | .312" | .062" | .407" | Order Online |
A |
CACE90 e Shape - Silicone 60 duro grey x 100 ft lengths acme-silicone-66403-spec-sheet |
.625" | .062" | .437" | .062" | .062" | .562" | .062" | .562" | Order Online |
A |
CACE100 e Shape - EPDM 60 duro black x 100 ft lengths acme-epdm-56000-spec-sheet |
.580" | .075" | .455" | .050" | .075" | .580" | .075" | .505" | Order Online |
A |
CACE100 e Shape - Viton 60 duro white x 10 foot roll acme-viton-76100-spec-sheet |
.580" | .075" | .455" | .050" | .075" | .580" | .075" | .505" | Order Online |
A |
CACE100 e Shape - Viton 60 duro black x 10 ft lengths acme-viton-76000-spec-sheet |
.580" | .075" | .455" | .050" | .075" | .580" | .075" | .505" | Order Online |
C  |
CACE110 e Shape - Silicone 50 duro grey x 100 ft lengths acme-silicone-65440-spec-sheet |
.625" | .062" | .425" | .138" | .062" | .625" | .062" | .563" | Order Online |
A |
CACE115 e Shape - EPDM 60 duro black x 12 ft lengths acme-epdm-56000-spec-sheet |
.625" | .085" | .445" | .250" | .140" | .835" | .140" | .485" | Order Online |
A |
CACE117 e Shape - Nitrile 50 duro black x 12 ft lengths acme-nitrile-45009-spec-sheet |
.625" | .062" | .312" | .125" | .062" | .500" | .062" | .562" | Order Online |
A |
CACE117 e Shape - Viton 60 duro black x 10 ft lengths acme-viton-76000-spec-sheet |
.625" | .062" | .312" | .125" | .062" | .500" | .062" | .562" | Order Online |
B |
CACE120 e Shape - Silicone 60 duro grey x 50 ft lengths acme-silicone-66409-spec-sheet |
.750" | .047" | .453" | .031" | .047" | .531" | .047" | .703" | Order Online |
A |
CACE125 e Shape - Neoprene 40 duro black acme-neoprene-34009-spec-sheet |
.750" | .070" | .225" | .080" | .070" | .375" | .125" | .625" | Request Quote |
A |
CACE130 e Shape - EPDM 50 duro black acme-epdm-55000-spec-sheet |
.750" | .062" | .625" | .093" | .062" | .780" | .062" | .687" | Request Quote |
A |
CACE135 e Shape - Neoprene 50 duro black x 50 ft lengths acme-epdm-55000-spec-sheet |
.750" | .062" | .625" | .093" | .093" | .810" | .093" | .657" | Order Online |
A |
CACE150 e Shape - Silicone 50 duro grey x 100 ft lengths acme-silicone-65409-spec-sheet |
1.00" | .094" | .750" | .094" | .094" | .938" | .094" | .906" | Order Online |
A |
CACE150 e Shape - EPDM 60 duro black x 75 ft lengths acme-epdm-56000-spec-sheet |
1.00" | .094" | .750" | .094" | .094" | .938" | .094" | .906" | Order Online |
A |
CACE160 e Shape - Viton 60 duro black x 10 ft lengths acme-viton-76000-spec-sheet |
1.00" | .094" | .750" | .094" | .094" | .938" | .094" | .906" | Order Online |
A |
CACE170 e Shape - Nitrile 60 duro black x 50 ft lengths acme-nitrile-46000-spec-sheet |
.906" | .157" | .656" | .125" | .125" | .906" | .125" | .562" | Order Online |
A |
CACE180 e Shape - EPDM 70 duro black acme-epdm-57000-spec-sheet |
1.00" | .125" | .687" | .125" | .125" | .937" | .125" | .625" | Request Quote |
A |
CACE180 e Shape - Viton 60 duro black x 10 ft lengths acme-viton-76000-spec-sheet |
1.00" | .125" | .687" | .125" | .125" | .937" | .125" | .625" | Request Quote |
A |
CACE184 e Shape - EPDM 70 duro FDA grade white x 10 ft lengths acme-epdm-57109-spec-sheet |
1.00" | .125" | .937" | .125" | .125" | 1.187" | .125" | .625" | Order Online |
B |
CACE190 e Shape - EPDM 70 duro black x 70 ft lengths acme-epdm-57000-spec-sheet |
.844" | .156" | .906" | .062" | .156" | 1.250" | .156" | .688" | Order Online |
A |
CACE195 e Shape - Silicone 50 duro white x 50 foot roll acme-silicone-65109-spec-sheet |
1.968" | .236" | .880" | .236" | .236" | 1.352" | .236" | 1.732" | Order Online |
