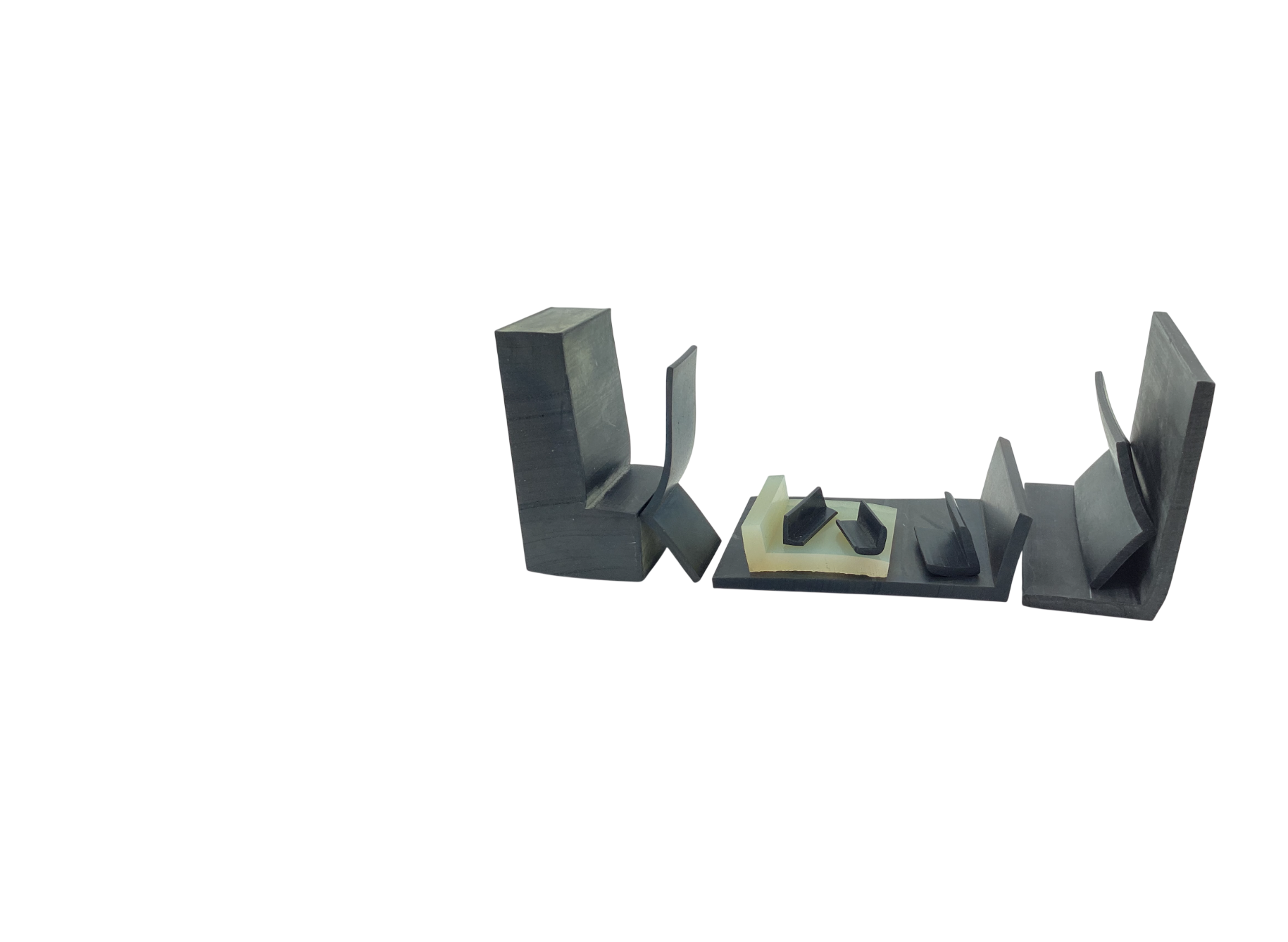

"L" shape rubber can be used in many applications to seal perpendicular surfaces or 90° angles, and is effective as an edge protector to prevent injuries and reduce damage and wear.
Available in a variety of rubber compounds depending on your application including Viton, Silicone, Fluorosilicone, Neoprene, EPDM, Hypalon, Butyl, Nitrile, SBR and Natural rubber.
Don't see the exact dimensions you need? Contact us and we can quote a CUSTOM shape for you.
Photos of items for sale are available on the order online page.
Order your "L" shape rubber Online Now!
| A | B | C | D | E | F | |||
|---|---|---|---|---|---|---|---|---|
| Figure | Catalog Number | Inside Width | Leg Thickness | Total Width | Inside Depth | Base Thickness | Total Height | |
A  |
CACL05 L shape - Silicone 60 duro black x 100 ft lengths acme-silicone-66007-spec-sheet |
.196" | .060" | .256" | .315" | .060" | .375" | Order Online |
B  |
CACL10 L shape - Neoprene 60 duro black x 100 ft lengths acme-neoprene-36000-spec-sheet |
.312" | .093" | .406" | .312" | .093" | .406" | Order Online |
B |
CACL15 L shape - Neoprene 60 duro black x 10 ft lengths acme-neoprene-36000-spec-sheet |
.562" | .125" | .687" | .562" | .125" | .687" | Order Online |
B |
CACL15 L shape - Natural 60 duro tan x 100 ft lengths acme-natural-rubber-16300-spec-sheet |
.562" | .125" | .687" | .562" | .125" | .687" | Order Online |
A |
CACL17 L shape - EPDM 80 duro black x 50 ft lengths acme-epdm-58000-spec-sheet |
.875" | .125" | 1.00" | 1.125" | .125" | 1.250" | Request Quote |
A |
CACL20 L shape - EPDM 70 duro black x 25 ft lengths acme-epdm-57000-spec-sheet |
1.125" | .125" | 1.250" | 1.125" | .125" | 1.250" | Order Online |
A |
CACL30 L shape - EPDM 60 duro black x 25 ft lengths acme-epdm-56000-spec-sheet |
1.00" | .250" | 1.250" | 1.00" | .250" | 1.250" | Order Online |
A |
CACL40 L shape - EPDM 70 duro black x 125 ft lengths acme-epdm-57000-spec-sheet |
1.00" | .100" | 1.125" | 1.875" | .125" | 2.00" | Order Online |
B |
CACL50 L shape - EPDM 85 duro black x 10 ft lengths acme-epdm-58019-spec-sheet |
1.140" | .300" | 1.437" | 1.270" | .450" | 1.720" | Order Online |
A |
CACL60 L shape - Silicone 70 duro translucent acme-silicone-67907-spec-sheet |
.375" | .250" | .625" | 1.500" | .250" | 1.750" | Request Quote |
A |
CACL65 L shape - Neoprene 40 duro black x 14 ft lengths acme-neoprene-34000-spec-sheet |
1.219" | .218" | 1.437" | 1.532" | .218" | 1.750" | Order Online |
A |
CACL70 L shape - EPDM 60 duro black x 25 ft lengths acme-epdm-56000-spec-sheet |
1.282" | .218" | 1.500" | 2.782" | .218" | 3.00" | Order Online |
A |
CACL85 L shape - EPDM 60 duro black x 26 ft lengths acme-epdm-56000-spec-sheet |
.760" | .800" | 1.560" | 2.175" | .950" | 3.125" | Order Online |
A |
CACL91 L Shape - Nitrile 60 duro black x 29 ft lengths acme-nitrile-46000-spec-sheet |
1.00" | .175" | 1.175" | 3.500" | .175" | 3.675" | Request Quote |
A |
CACL95 L shape - Viton 70 duro black x 10 ft lengths acme-viton-77000-spec-sheet |
1.075" | .175" | 1.250" | 3.825" | .175" | 4.00" | Order Online |
A |
CACL95 L Shape - Nitrile 60 duro black x 29 ft lengths acme-nitrile-46000-spec-sheet |
1.075" | .175" | 1.250" | 3.825" | .175" | 4.00" | Request Quote |
